CY-150B bottom-discharge variant with compact dimensions and the same 60 mm branch capacity for garden operators.
| Specification | Details |
|---|---|
| Engine options | Petrol 170F manual/electric start; diesel 173F / 178F electric start; three-phase 4.5 kW motor; Honda GX160 manual/electric start |
| Maximum branch diameter | 60 mm |
| Cutter size | 150 × 55 × 7 mm |

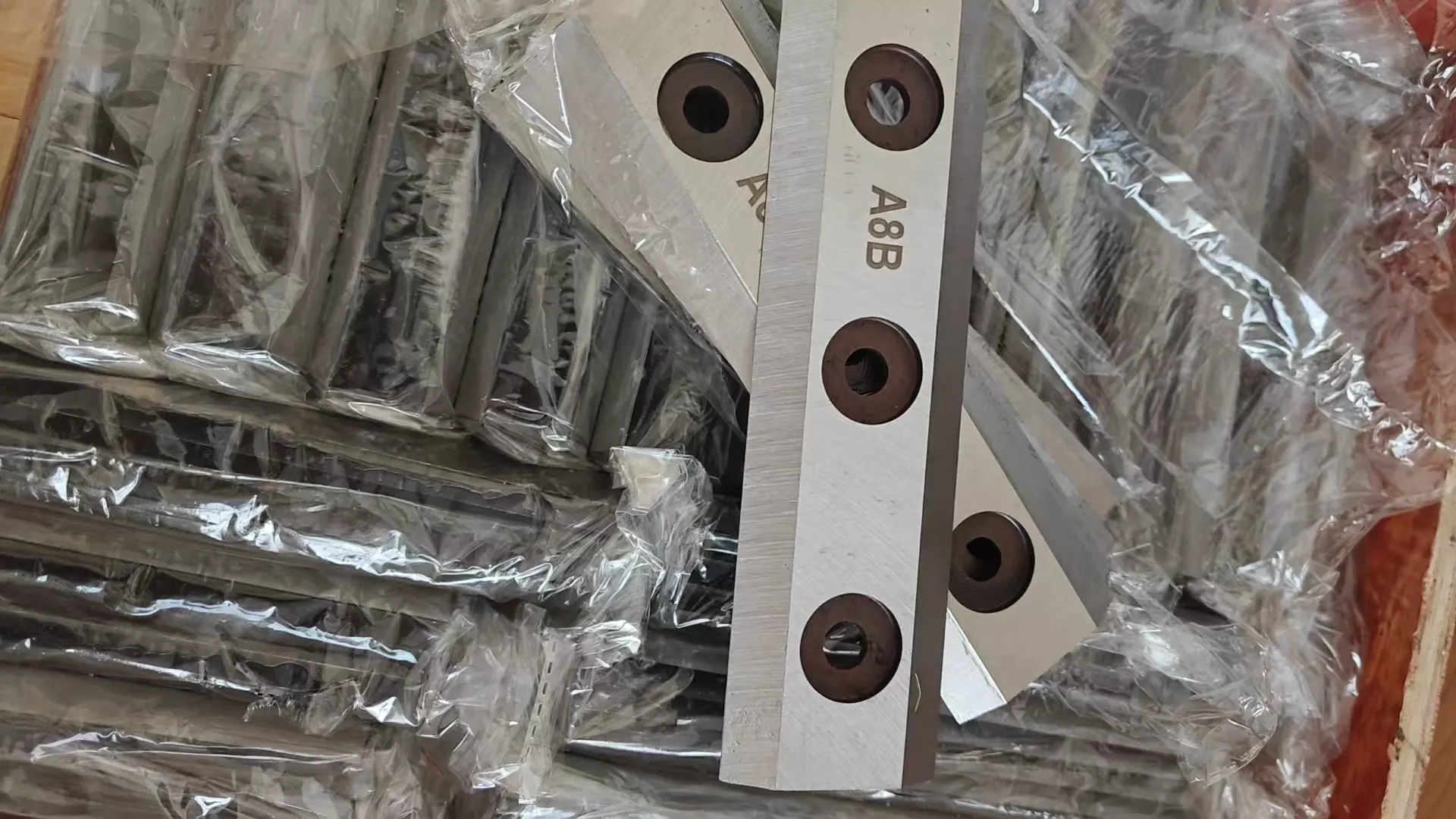

| Blade material | A8 blade / tungsten steel |
| Rotor speed | 2,600 rpm |
| Blade set | 3 fly knives + 1 bottom knife |
| Tyre size | 300-8 |
| Discharge | Bottom discharge |
| Hopper | 500 × 530 mm |
| Gross / net weight | 150 / 130 kg |
| Machine size | 110 × 58 × 118 cm |
| Packing size | 110 × 60 × 120 cm |
| Theoretical working efficiency | 1,000–1,300 kg/h |
Packing size: 110 × 60 × 120 cm
The specifications above are theoretical data. If there is any discrepancy, the physical product shall prevail.
